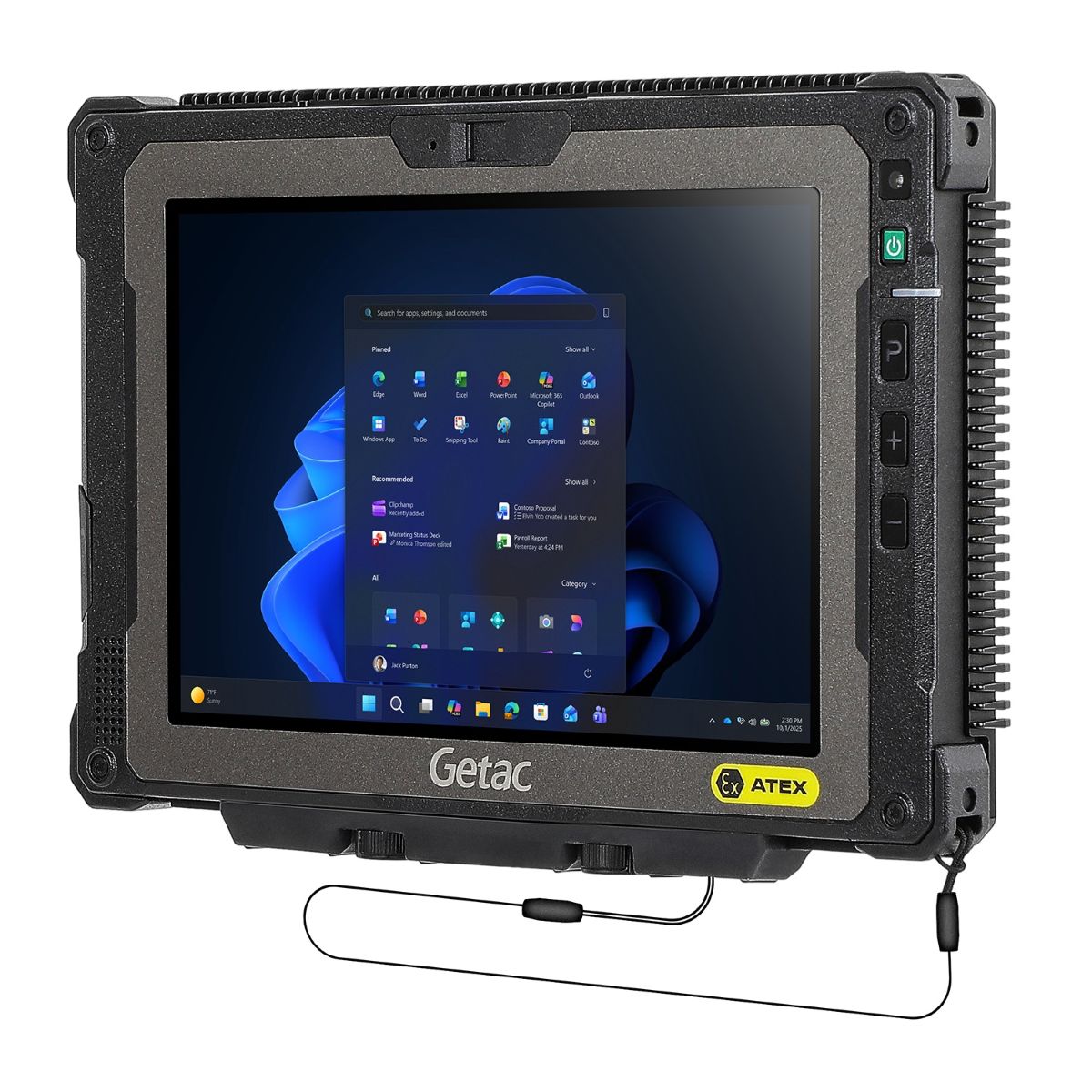

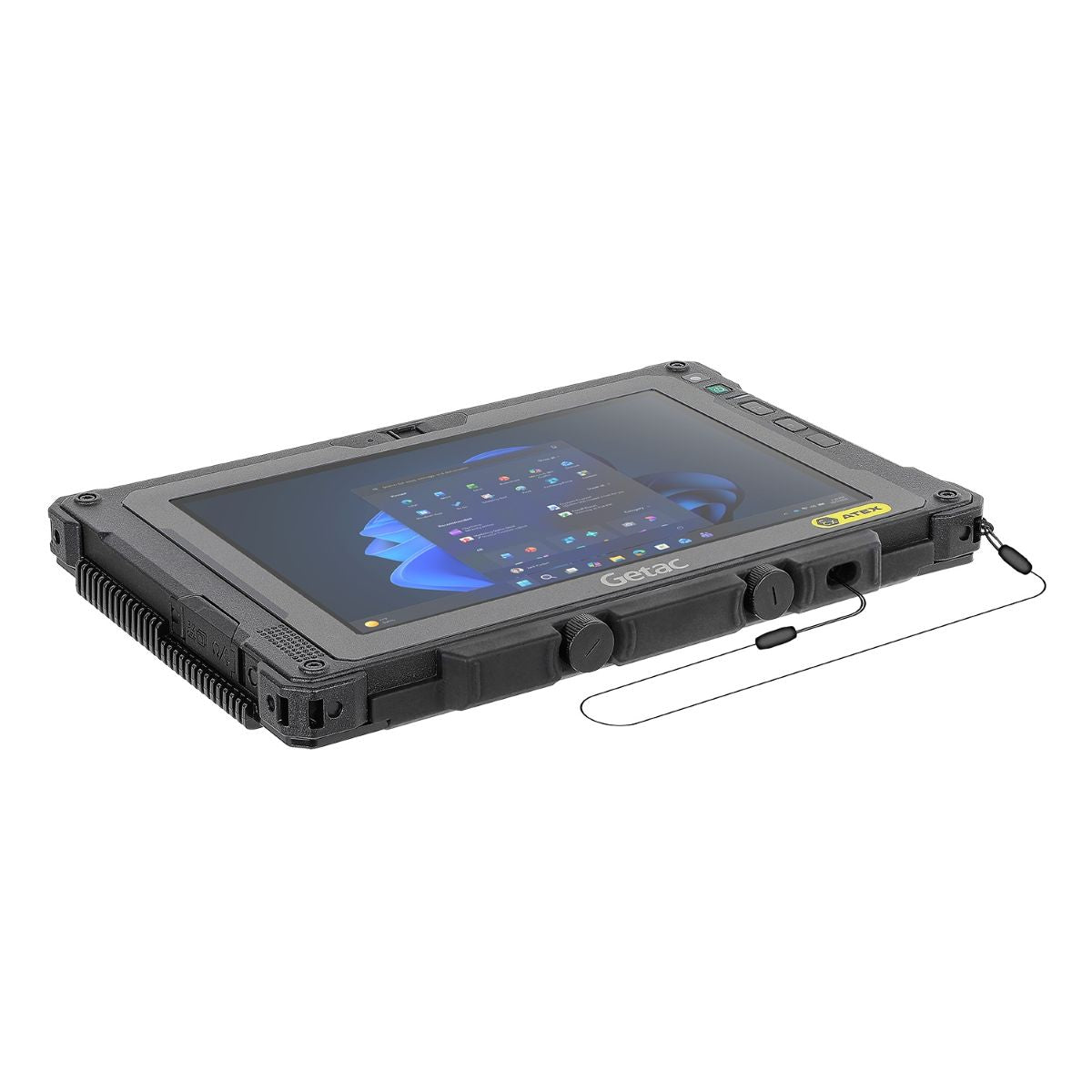

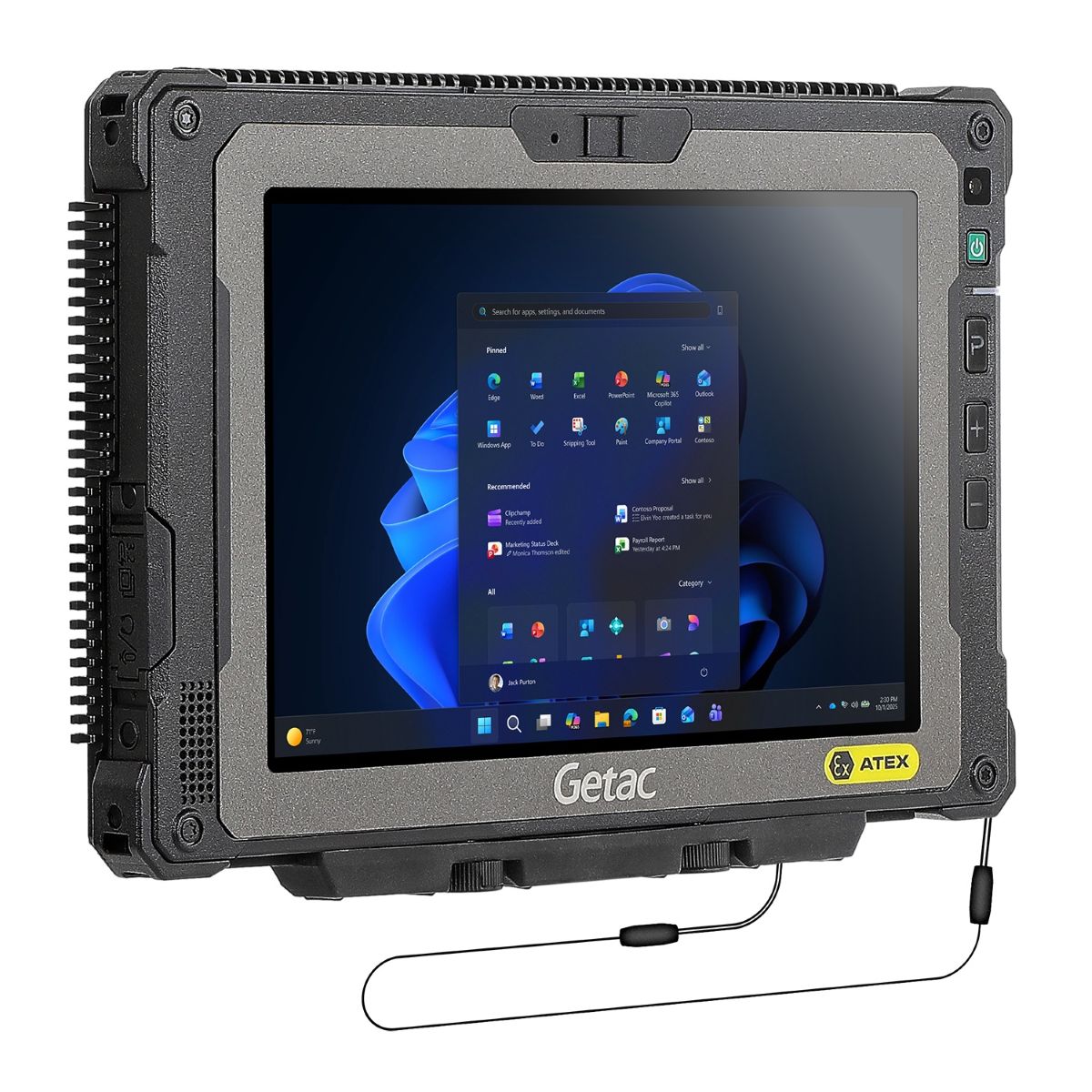

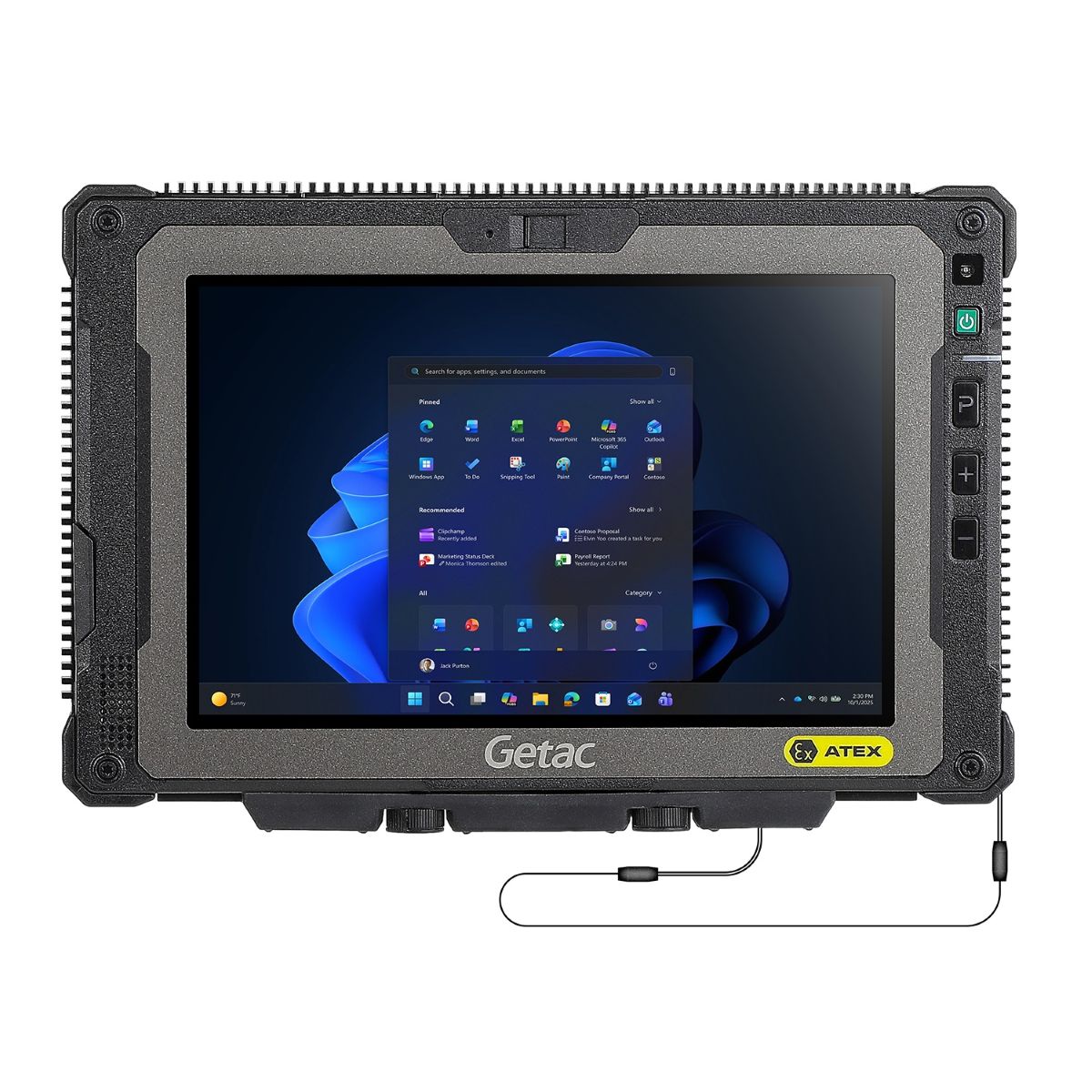

Getac ZX80W-Ex

The fully rugged 8" ZX80W ATEX tablet with Windows IoT operating system (Windows on ARM) is designed for AI applications in hazardous areas, enabling real-time analysis, asset management, and UAV control. It features extreme durability and long battery life in a slim, lightweight design.

Operating System
- Windows 11 IoT Enterprise LTSC

Computer Platform
- Qualcomm^® QCS6490, Octa-Core 1.9 GHz, max. 2.7 GHz

VGA Controller
- Qualcomm^® Adreno™ 643 GPU

NPU
- Qualcomm^® Hexagon™ Processor, up to 13 TOPS with 6. Qualcomm AI Engine

Display
- 8" Wide Viewing Angle TFT LCD WUXGA (1920 x 1200)
- Anti-static protective film
- 1,000 nits LumiBond^® display with Getac sunlight readable technology
- Capacitive multi-touchscreen

Storage
- 12GB LPDDR5
- 256GB UFS

Keyboard
- Power Button
- 3 programmable tablet buttons

Touch
- Dual-mode touchscreen (multi-touch and digitizer)

Audio
- Integrated speakers
- Integrated dual-array microphone

Expansion Slot
- Optional: 1D/2D Imager barcode reader

I/O Interface
- 1 x 8MP webcam
- 1 x 16MP autofocus rear camera
- 1 x Combined speaker output/microphone input
- 1 x USB 3.2 Gen 1 Type-C with DP and PD
- 1 x MicroSD/Optional: 1 x Hybrid SIM card slot (Nano-SIM, 4FF) with MicroSD

Communication Interfaces
- Wi-Fi 6E 802.11ax
- Bluetooth (v5.2)
- Dedicated L1/L5 GPS
- Optional: Dual SIM (Nano-SIM 4FF and e-SIM)
- Optional: 4G LTE Mobile Broadband
- Optional: 5G Sub-6

Security Features
- fTPM (Qualcomm TrustZone)
- Getac Secure Erase

Power Supply
- Internal battery (3.86 V, typical 4060mAh; min. 3950mAh) + 2nd battery bay cover
- Optional: 2nd battery (3.84 V, typical 4990mAh, min. 4870mAh) with LifeSupport technology

Dimensions (W x D x H) & Weight
- 243.2 x 165.1 x 23.1 mm
- 780 g

Ruggedness Certifications
- Certified to MIL-STD-810H
- Certified to IP67
- Vibration protection and 1.8 m (6 ft.) drop resistant

Explosion Protection
- ATEX/IECEx Zone 2/22
- Ex II 3G Ex ic op is IIC T4 Gc
- Ex II 3D Ex ic op is IIIC T130°C Dc

Environmental Specifications
- Temperature:
  -- Operation: -21 °C to 55 °C / -5.8 °F to 131 °F
  -- Storage: -51 °C to 71 °C / -60 °F to 160 °F
- Humidity:
  -- 95% RH, non-condensing

Manufacturer's Warranty
- Device: 36 months with Bumper-to-Bumper
- Accessories: 12 months

Included in Delivery
- Optional: Power adapter
- Optional: Power cable
- Digitizer stylus
- Anti-static protective film (pre-applied)

3-year comprehensive insurance warranty (extendable up to 5 years) - Bumper-to-Bumper
